65192910
The NEW 738H+ has the following features: 70 watt soldering iron with smoke absorber, Tool Box, Temperature calibration, Vacuum Pickup Kit, 10 Soldering iron tips, Spare Heating Elements for the iron and the hot air, Digital Calibration and Adjustable sleep timer for the soldering iron. The Quality and features available on this unit are the best in the industry. Soldering Iron Features: 70 Watt Iron using low cost standard tips Creative Removable built-in smoke extractor that absorbs the fumes created at the source when soldering. Digital Display Digital Calibration Feature Microprocessor controlled element for precise temperature control Adjustable sleep timer Configurable soldering iron holder that uses a sponge or a brass coil Hot Air Features Microprocessor precisely controls temperature and airflow Visual Air Flow gauge Microprocessor controlled with self-testing hot air heating core system which warns user when aging or breakdown of the heating core occurs. Maintains a constant set temperature when the set and the value is reached The highest wattage heater on the market(600 watts) enables this unit to tackle any size job Digital display of hot air set and actual temperature. Auto cool-off process that leaves the blower on until the nozzle is cool, this prolongs life of the heating element and to ensure safety. ESD Safe Unit that meets CE and RoHS. Package List: 738H station with hot air gun 70 Watt Soldering iron with Silicone Cord Hot air gun holder Soldering iron holder made of Aluminum and with sponge and brass coils. Vacuum Pickup kit with 3 suction cups to easily pickup IC's Spare Heating Elements for the Hot Air Gun and the Soldering Iron 10 Soldering iron tips (T-B, T-LB, T-0.8D, T-1.2D, T-1.6D, T-2.4D, T-1C, T-0.5C, T-I(installed in soldering iron)) IC popper 6 Air nozzles ( 1124,1130, 1196, 1197, 1010, 1313 BGA-M) 2 Filter pads Instructions Power cord SRA Soldering Products is the Exclusive Distributor and will handle warranty repairs after the first 30 days (for issues within 30 days contact Amazon directly). The warranty period is 1 year after shipment. Heating elements and soldering tips are not covered under warranty. Please contact [email protected] for service or spare parts or call 1-800-545-4750.
◆ HIGH PERFORMANCE - 500 Watts of heating power and has a long life metal heater for the Hot Air. Very Quick heat up and a built in air flow gauge. Large Volume air pump that has a maximum flow of 23L/min with adjustable air flow. There is a powerful 70 Watt soldering iron for fast responsive soldering. All this is controlled through the Atmega16A microcontroller. There is a built in smoke absorber on the soldering iron to remove fumes to keep you safe.
◆ MULTI-TOOL CAPABILITY - SMD Reworking tool designed to remove and/or repair surface mounted devices such as SOIC, CHIP, QFP, BLCC, BGA, and so on. There are 50+ nozzles sizes available. 5 Nozzles are included (1124,1130,1196,1197, 1313). Also contains an assortment of 10 soldering iron tips. Also a powered vacuum pickup tool is included and can be used to pickup small IC's. Macro Heater Tweezers and a toolbox to holde all the accessories
◆ INTELLIGENT FUNCTIONS - It has several advanced features such as the auto nozzle cooling process after reworking, auto sleep function when placed in the hot air holder, Temperature scale selectable between Centigrade and Fahrenheit. Digital display of hot air set and actual temperature. Microprocessor controlled with self-testing hot air heating core system which warns user when aging or breakdown of the heating core occurs. Digital calibration of the soldering iron and hot air system. This also has an automate mode with programmable reworking time.
◆ VERSATILE SOLDERING IRON STAND - The configuratble stand can be setup with the spool holder on either side of the station and there is an optional sponge holder. The stand will fit any of the available irons and the included Macro Soldering tweezers.

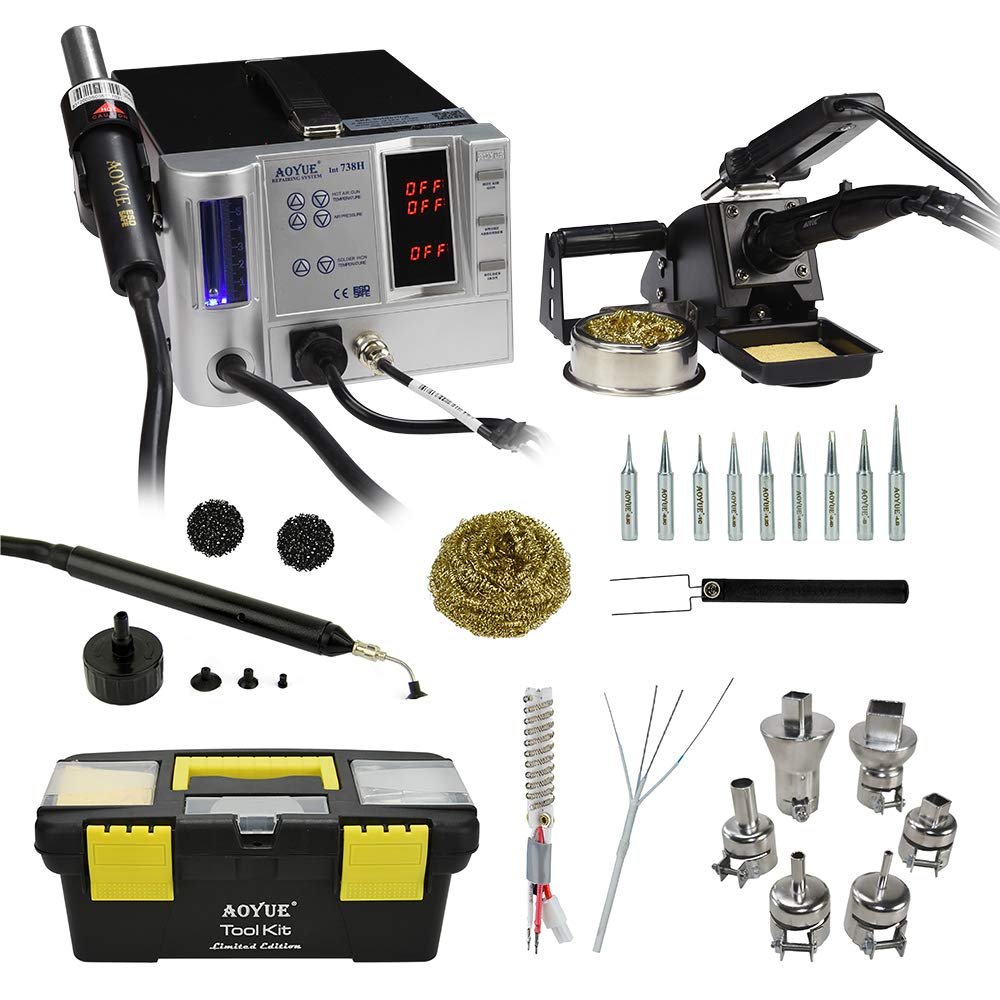

◆ WHAT YOU GET - 1 x Aoyue 738H Station with Hot Air and Soldering Iron, 1 x power cord , 5 x SMD Nozzles, 3 x Vacuum Pickup Cups, Vacuum Suction Pen, 1 x IC Popper 1, 1 x Spare Heating Element for the Soldering Iron, 1 x Spare Heating Element for the Hot Air, 10 x Soldering tips(1 installed in the iron), 1 x TY-98 Brass Coil tip cleaner, 1 x Toolbox, 1 x Soldering Tweezers, 1 x User Manual.
