3/4" Stainless Steel Hot Water Meter with Pulse Output - Accurate Flow Measurement for Residential & Commercial Plumbing Systems

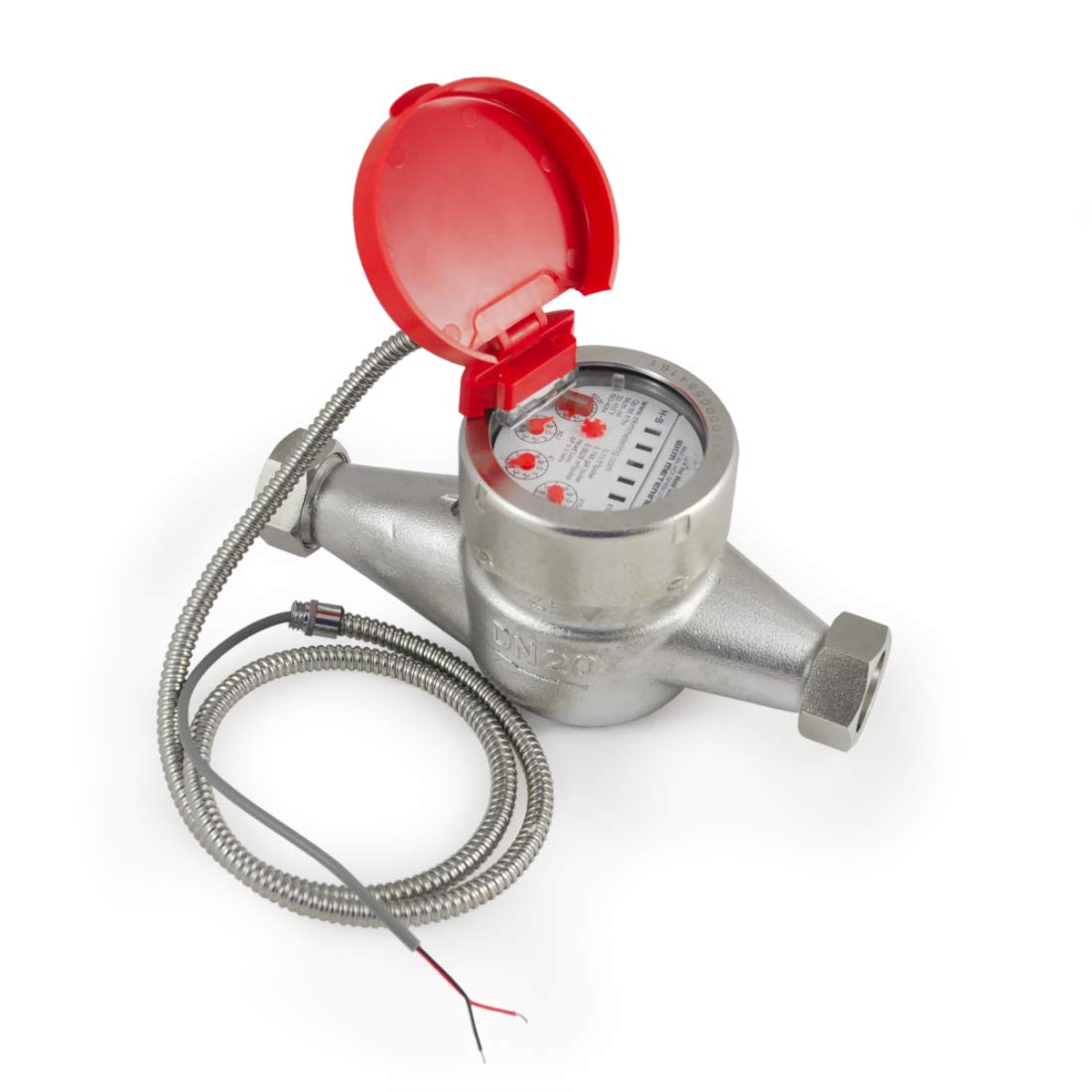

The HOT-SPWM-075-CF is a remote readable 3/4" Hot Water Meter intended for submetering purposes. This meter is most commonly used to measure the hot water (up to 165°F) consumption of rental units but is can also be used to measure the water usage off a single appliance, irrigation line, etc. The meter includes a pulse output which allows the meter to be read remotely. EKM offers our EKM Push3 cloud-based data system to make the gas meter data available online. The HOT-SPWM-075-CF can also just be read locally on its dials like a traditional water meter. This is a well made, industrial grade, stainless steel (201 grade) water meter. You can use it as a traditional water meter where you read the water consumption off of the face of the meter. It also has the added functionality of being able to connect the pulse output wires to a pulse counting device. This meter produces a pulse for every 1/10 cubic foot (approx. 0.75 gallon, or 2.83 liters) that flows though the meter, these pulses can be then picked up and counted by our pulse counting devices. The pulse output wires can be extended up to 10,000 ft. 3/4" hot water meter with pulse output The HOT-SPWM-075-CF reads in cubic feet and generates a pulse for every 0.1 cubic feet of hot water that passes through the meter. 3/4" NPT threaded adapters included Each meter includes 2x 3/4" male threaded adapters, 2x adapter retention nuts, and 2x rubber gaskets. Readable online at encompass.io When paired with an Omnimeter Pulse v.4 and Push3 gateway the water meter data is available at encompass.io, our online dashboard and meter billing platform. SPWM-075-CF HOT-SPWM-075-CF SPWM-075-HD-NSF VSPWM-075-HD-NSF SPWM-100-NSF Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — — 4.0 out of 5 stars 1 — 4.0 out of 5 stars 1 Price — no data $130.00$130.00 $215.98$215.98 $209.00$209.00 $282.00$282.00 Size 3/4 Inch 3/4 Inch 3/4 Inch 3/4 Inch 1.0 Inch MNPT Fittings Included ✓ ✓ ✓ ✓ ✓ Pulse Rate 1 pulse/0.1 ft³ 1 pulse/0.1 ft³ 1 pulse/0.01 ft³ 1 pulse/0.01 ft³ 1 pulse/0.1 ft³ NSF Certified no data no data ✓ ✓ ✓ NTEP Certified ✓ no data ✓ ✓ ✓ Stainless Steel ✓ ✓ ✓ ✓ ✓ Lead Free ✓ ✓ ✓ ✓ ✓ Flow Direction Horizontal Horizontal Horizontal Vertical (bottom to top) Horizontal Maximum Flow Rate 176.5 ft³/hr (22 GPM) 176.5 ft³/hr (22 GPM) 240.6 ft³/hr (30 GPM) 240.6 ft³/hr (30 GPM) 401.0 ft³/hr (50 GPM) Maximum Pressure 140 PSI 140 PSI 150 PSI 150 PSI 150 PSI Pulse Counting Our Omnimeter Pulse v.4 (sold separately) is an electric submeter that is capable of counting pulses from up to 3 separate pulse output devices, such as our water and gas meters. The pulse counts are included in the Omnimeter dataset which is remotely readable online via our Push3 gateway. Remote Reading The EKM Push3 gateway (sold separately) is capable of reading up to 128x Omnimeters and pushing their data to the cloud. Once the data is in the cloud you can visualize the data online at encompass.io and generate reports and bills. The Push3 data service and encompass.io are both free to use with no recurring fees of any kind. Dashboard, Reporting, and Billing Once the EKM Push3 gateway sends the data to the cloud it is available in your free online Encompass account. The data can be visualized on customizable dashboards, presented in PDF or CSV reports, or formatted into PDF or CSV bills which can be sent on to your tenants.
